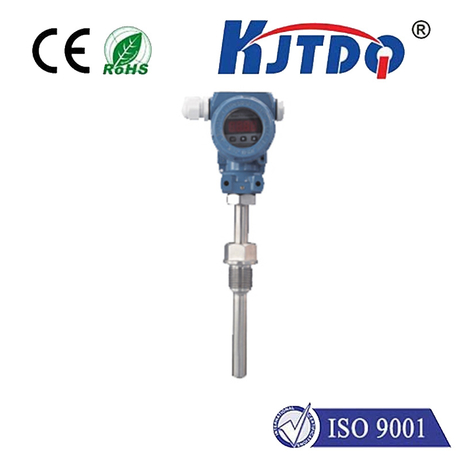

Widely used in automation testing and control fields such as petroleum, chemical, textile, rubber, building materials, electricity, metallurgy, medicine, food, etc. The meter head can be used to modify the input graduation number and range range through the meter head buttons. KJT-XAQC-1600 explosion-proof integrated temperature transmitter, KJT-XAQC-1600 explosion-proof integrated temperature transmitter adopts PT100 sensor, digital display head, 4-20mA output, and the insertion depth can be customized according to customer needs. It can be threaded fixed or flange mounted, or can protect the outer lining of the pipe from PTFE corrosion. Two wire output without compensating wires; Strong anti-interference ability and good remote transmission performance; Simple structure, reasonable and convenient installation; Miniaturization, safety and reliability, long service life; Two wire and three wire input methods are approved; The digital display shows temperature on-site, with high clarity and no visual error.
| input | thermal resistance Pt100 | |
| Measuring range | -200℃-450℃（thermal resistance） | |
| accuracy class | 0.5％FS | |
| output signal | 4-20mA | |
| Supply Voltage | 24VDC | |
| load voltage | 0-500Ω | |
| ambient temperature | -20—85℃ | |
| interface | M20×1.5、M16×1.5 or G1/2\G1/4 | |
| Protective tube material | 1Cr18Ni9Ti | |
| get involved in | 30mm/50mm/100mm/150mm/200mm/250mm/300mm | |
TYPOLOGY | illustrate | |
| model | KJT-SAQC-1600 | Integrated temperature transmitter |
| Output | E | 4-20mA |
| V5 | 0-5V | |
| V10 | 0-10V | |
| accuracy class | 1 | 0.5 LV |
| 2 | 0.2 lV | |
| rocess connection | A | 27*2 |
| B | 20*1.5 | |
| protective tube | 0 | 16 |
| 1 | 12 | |
| Display method | 0 | Without display |
| M3 | Display with LED meter head | |
| Power supply mode | A | DC24VOn Battery |
| measuring range | -200-450℃（thermal resistance） | Customer's Choice |
