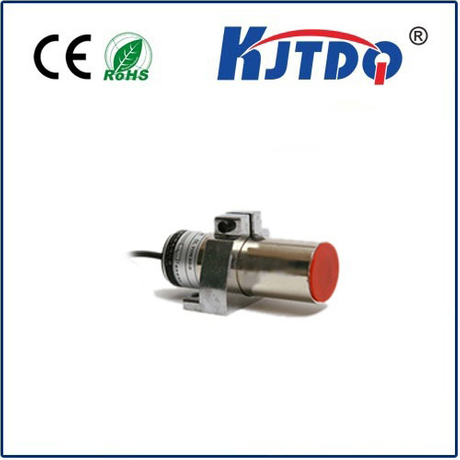

KJT speed control switch products are mainly developed according to the actual needs of customer sites. The products have a wide range of electricity, and can be applied to 24VDC─110VAC─220VAC (different voltage levels are configured with intermediate relays of different voltages), bringing unified purchasing to users. Easy installation and good interchangeability. The product can effectively and timely handle electrical and process failures such as stalling, jamming, overloading, slow rotation, belt slipping, transmission chain (belt) falling off, transmission shaft breakage, etc. that often occur in motors and mechanical transmission devices. It can play a role in ensuring production and maintaining equipment.
| Working power supply | 220VAC±15% |
| Insulation resistance | >500MΩ |
| Ambient temperature | -20℃~+60℃ |
| Overall dimensions | Ф38×115mm |
| Protection level | IP66 |
| Escape time | 5 seconds |
| Detection distance H2 | ≤8mm |
| Load current | ≤5A |
| Output signal | switch signal |
| Environmental humidity | ≤90% |
| Weight | 0.5Kg |
| Detection speed range | 1~200 rpm |
| Response time | <2mS |
| Suitable for small safe working distance H1 | ≥20mm |
